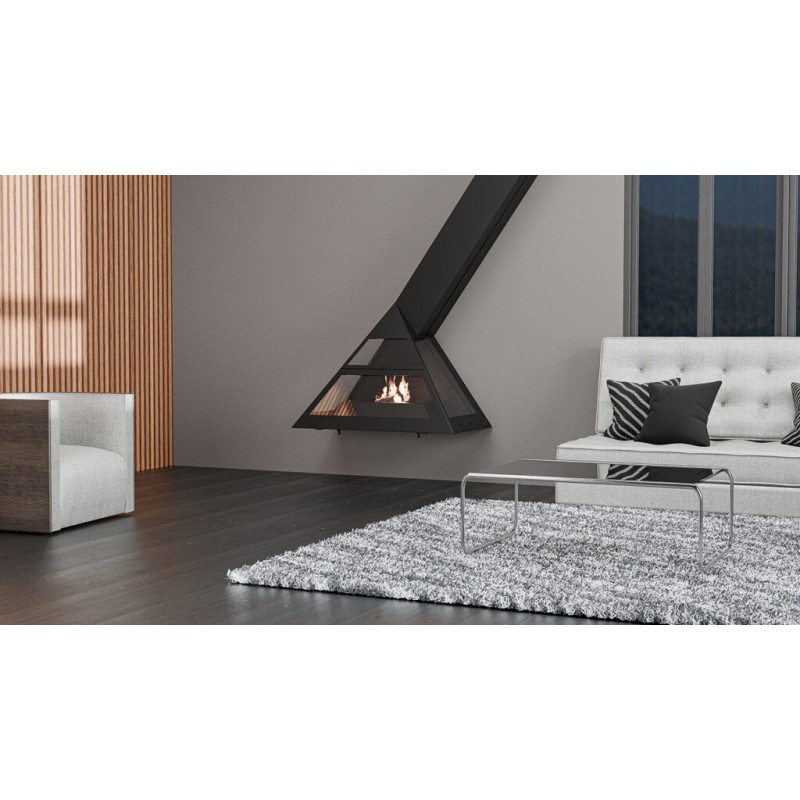

Traforart Admeto Oblique Front Facing is a wall-mounted Ecodesign fireplace with a metal body, three-sided glazing and an oblique smoke outlet. Its wide view of the flames and asymmetric silhouette make it a strong architectural feature for contemporary interiors.
The energy label and official product page state a nominal output of 12.2 kW; the latest technical test table records 12.9 kW. The same datasheet specifies 79.3% efficiency, energy class A, 224 kg net weight, a Ø200 mm flue, a Ø100 mm outside-air connection and Ecodesign compliance. Overall dimensions are 1194 × 665 × 2568 mm; the minimum safety distance is 1500 mm. A wall-mount bracket is included.
Wood, bioethanol and gas versions have catalog prices. The standard finish is black; anthracite grey is available for an additional charge, while other heat-resistant colours are supplied on request.
Available accessories include a 1 m flue cover extension, an inclined-ceiling trim, a 1250 × 750 mm floor plate, a 200 × 200 mm grate and three pedestal versions: closed small, open small and large. Replacement glass and vermiculite can be ordered separately.
| Fireplace technical specifications | |
| Heat-resistant Paint | Yes |
| Performance | 79.3% |
| Power | 12.2 kW nominal (12.9 kW test table) |
| RAL Range | No |
| Rotating System | No |
| Weight | 224 kg |
| Energy efficiency class | A |
| Overall dimensions | 1194 × 665 × 2568 mm |
| Flue diameter | Ø200 mm |
| Outside air intake | Included, Ø100 mm |
| Installation type | Wall-mounted front-facing with oblique flue |
| Minimum safety distance | 1500 mm |
| Doors | One opening front door |
| Ecodesign | Yes |
| Wall-mount bracket | Included |
| Thumb | File information |
| Traforart-admeto-frontal-oblicua-FT-ENG.pdf File Size397.59KB |
- Stock: 1
- Brand: Traforart
- Model: Admeto Oblique Front Facing
- Weight: 224.00kg
- Dimensions: 66.50cm x 119.40cm x 256.80cm
- SKU: 1042-02-02-01-00
- MPN: 1042-02-02-01-00
